160W BC Flexible Monocrystalline Solar Panel
- 160W High-Efficiency BC Monocrystalline Solar Cell, Efficiency Over 23.5%

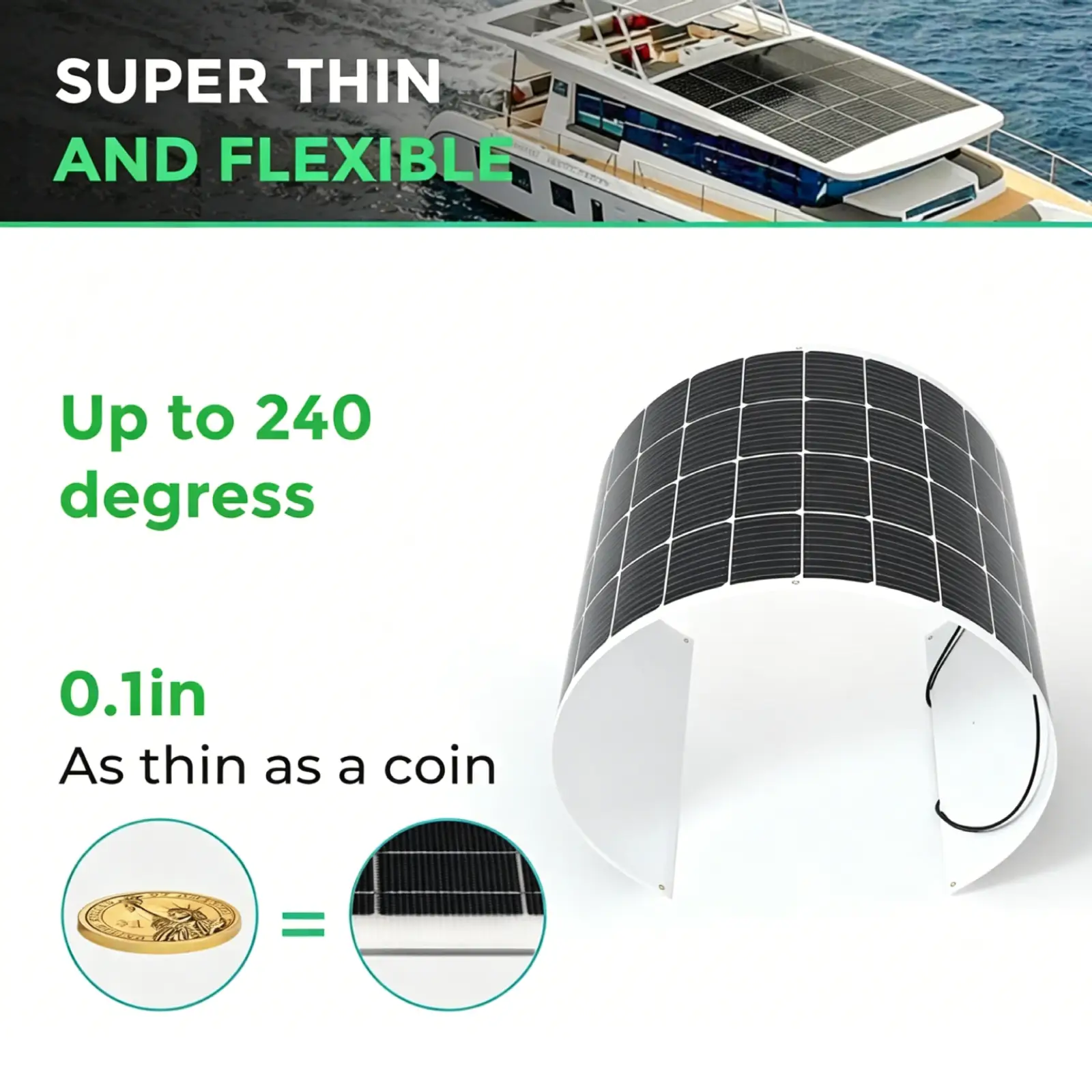

- Ultra-Light & Flexible Design, Only 2.95kg with 240° Flexibility
- Freely Fits Curved RV, Van, Cabin, SUV and Boat Surfaces
- IP67 Waterproof & Dustproof Junction Box with MC4 Connectors
- Wide Temp Range: -30℃ ~ +75℃
- Stable High Output Even Under Low-Light Conditions (>75% power at 200W/m²)
- Pre-Drilled Mounting Holes & Pre-Wired 12AWG Cable for Easy Installation
- Durable ETFE Surface, No Fragile Glass, Anti-UV & Salt Spray Resistant
- Withstands Wind Load up to 2400Pa & Snow Load up to 5400Pa
- Airline-Friendly with No Built-In Battery
- Ideal for Off-Grid Cabin, RV, Camping and Marine Applications
Share to
Category:
Our 160W BC Flexible Monocrystalline Solar Panel targets global wholesalers for RV, marine, cabin and off-grid power scenarios. With over 23.5% cell conversion efficiency, it delivers steady power generation even under cloudy low-light environments, outputting over 75% rated power at 200W/m² weak light. Weighing only 2.95kg, this 240° bendable solar panel perfectly conforms to all curved surfaces of vans, yachts, campers and small cabins. Its premium ETFE coating provides marine-grade strong resistance against salt spray erosion and long-term UV aging, paired with an ultra-slim flush-mounted full-black anti-glare appearance. Equipped with universal pre-wired MC4 connectors and 12AWG heavy-duty solar cables, it is widely compatible with most mainstream 12V battery systems and portable power stations. The panel is engineered to withstand 2400Pa wind pressure and 5400Pa snow load, with an IP67 waterproof junction box and a wide working temperature range of -30℃ ~ +75℃. Backed by a 5-year product warranty, complete international certifications (CE, UL, FCC, RoHS, ISO9001) and flexible OEM/ODM customization services, it serves as a reliable high-margin core product to expand your renewable energy business lineup.
Core Product Advantages
- High-Efficiency Power – >23.5% BC back-contact monocrystalline silicon, 160W rated power, low power attenuation.
- IP67 Rating – Dust and waterproof junction box, built to withstand harsh outdoor environments.
- 240° Flexible Performance – Freely bends to fit curved vehicle roofs, RVs, vans, cabins and boats.
- Premium ETFE Surface – Wear-resistant, anti-UV and anti-salt spray, no fragile glass structure.
- Lightweight Build – Only 2.95kg, easy to install on vehicles and carry outdoors.
- Wide Operating Temperature – -30℃ to +75℃, stable power generation in extreme hot and cold conditions.
- Excellent Low-Light Performance – Maintains over 75% output under dim light for steady power supply.
- Strong Wind & Snow Resistance – Supports 2400Pa wind load and 5400Pa snow load for long-term outdoor use.
- Standard MC4 Connector & 12AWG Cable – Pre-wired design for fast connection with batteries and portable power stations.
- Authoritative Global Certifications – ISO, UL, CE, FCC, RoHS certified with 5-year industry-leading warranty.
- Versatile Off-Grid Power – Ideal for RV living, marine use, outdoor camping and remote off-grid electricity supply.
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 160W Flexible BC Monocrystalline Solar Panel
- 1 × 60cm 12AWG MC4 Solar Connection Cable
- 1 × User Manual
Product & Packaging Specs
- Model: GT-SP-S160
- Special Feature: 240° Flexible, BC Back-contact Solar Cell
- Material Type: Monocrystalline Silicon, ETFE Surface
- Low-light performance: >75% @ 200W/m²
- Application Class: Class II
- Efficiency: >23.5% Top Grade BC Mono Cells
- Bending radius: ≥30 cm (static) / ≥11.81 inches (static)
- Product Dimensions: 44.0926.770.1 in
- Product Weight: 2.95 kg
- Electrical Parameter: Pmax=160W, Vmp=24V, Imp=6.67A, Voc=28.5V, Isc=6.77A
- Junction Box Rating: IP67 Waterproof & Dustproof
- Max System Voltage: 600V DC
- Power Tolerance: ±3%
- Wind Load: 2400Pa, Snow Load: 5400Pa
- Operating Temperature: -30℃ ~ +75℃
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 160 W | Maximum Power Voltage | 24 V |
| Maximum Power Current | 6.67 A | Open-circuit Voltage | 28.5 V |
| Short-circuit Current | 6.77 A | Connector Type | MC4 |
| Operating temperature | -30°C ~ +75°C | Maximum System Voltage | 600V DC |
| Product Weight | 2.95 kg | Product Dimensions | 44.09 × 26.77 × 0.1 in |
Frequently Asked Questions (FAQs)
It adopts BC back-contact monocrystalline cells with conversion efficiency over 23.5%, much higher than conventional PERC cells. It performs better under weak light, supports 240° large-angle bending, and the ETFE surface resists salt spray & UV, perfectly fit for RV, marine off-grid projects with lower power attenuation.
Our standard MOQ is 500pcs for stock orders. We provide full OEM & ODM services, including printing your brand logo, custom cable length, package design and parameter adjustment to meet your regional market demand.
Its Vmp is 24V, specially designed for 12V battery storage systems. Equipped with standard MC4 connectors, it is compatible with nearly all mainstream portable power stations, lithium batteries and lead-acid batteries for RV & marine use.
The static bending radius is ≥30cm, supporting 240° flexible bending. It can closely attach to various curved surfaces of vans, yachts, cabins and RV roofs without damage to internal cells.
It has IP67 waterproof & dustproof junction box, wide operating temperature from -30℃ to +75℃. It withstands 2400Pa wind pressure and 5400Pa snow load, plus marine-grade anti-salt-spray ETFE surface, stable for coastal, snowy and high-temperature outdoor scenarios.
Calculated based on 5 hours average effective sunlight, it can generate about 800Wh electricity per day. It fully covers daily power demand of small RV, fishing boat, camping and remote off-grid cabin lighting & small electrical appliances.
It holds complete global authoritative certifications including CE, UL, FCC, RoHS, ISO9001. All documents are available to support smooth customs clearance for Europe, North America, Australia and most global regions.
We offer a 5-year official product warranty. For mass orders, we provide a reasonable spare parts ratio in each shipment. If quality defects occur under normal use within warranty period, we support free replacement of defective panels.
