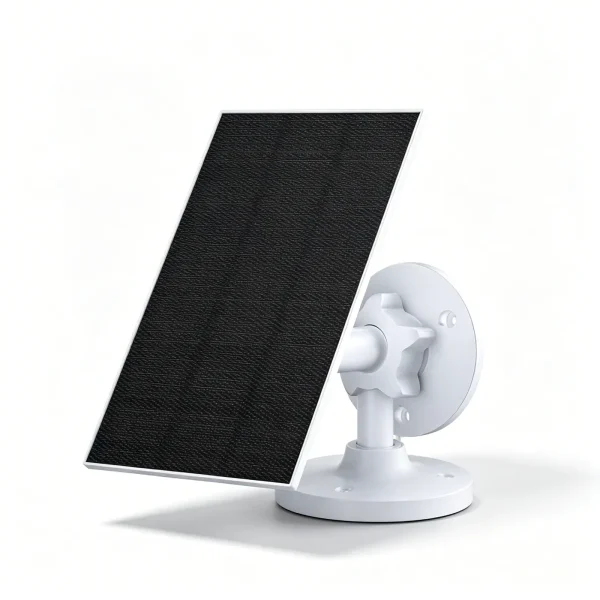

2.5W Surveillance Dedicated Solar Panel
- High efficiency mono silicon, >23.5% conversion efficiency
- 15°-360° adjustable angle bracket
- Ultra-lightweight, only 0.45kg
- IP65 waterproof & dustproof integrated panel
- USB Type-C port with 4m long cable
- Wide temp range: -20℃ ~ +60℃
- Full global safety certifications
Share to
Category:
The 2.5W Surveillance Dedicated Solar Panel is a wholesale power solution for outdoor wireless security cameras. Equipped with high-efficiency mono silicon cells delivering over 23.5% conversion efficiency and stable 2.5W output, it features fully sealed IP65 waterproof lamination and crack-resistant cells for long outdoor service life. Weighing merely 0.45kg, it includes a 15°–360° adjustable bracket and 4m Type-C cable compatible with most 5V surveillance cameras. Fully certified with CE, FCC, UL and RoHS, it supports bulk customization and fast delivery, serving as a high-margin product for distributors in the smart outdoor monitoring sector.
Core Product Advantages
- High Efficiency & Wide Compatibility: Over 23.5% conversion efficiency, steady 2.5W 5V output, reliably charges surveillance cameras even in weak light.
- Outdoor Toughness & Low After-Sales Cost: IP65 waterproof sealed lamination, crack-resistant cells, long service life cuts maintenance costs.
- Lightweight & Easy Mounting: Merely 0.45kg weight, 15°–360° adjustable bracket, supports wall and pole installation for all monitoring scenarios.
- Plug-and-Play & Complete Certifications: Equipped with 4m Type-C cable, CE/FCC/UL/RoHS certified to meet global sales compliance standards.
- High Profit & Stable Supply Chain: Consistent standardized quality, quick bulk delivery, high-margin product for monitoring industry wholesalers.
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 2.5W Surveillance Dedicated Solar Panel
- 1 × 4m USB Type-C Cable
- 1 × Mounting Bracket & Installation Screws
- 1 × User Manual
Product & Packaging Specs
- Model: GT-CTV-2.5
- Special Feature: 15°–360° fully adjustable wall mounting bracket
- Material Type: High-efficiency Monocrystalline Silicon, Sealed Waterproof Panel
- Low-light performance: Stable power output under cloudy weak light
- Application Class: Class II
- Efficiency: >23.5% Top Grade Mono Cells
- Operating Temperature: -20℃ ~ +60℃
- Product Dimensions: 127 × 76.2 × 177.8 mm / 537 in
- Weight: 0.45 kg
- Cable Length: 4m
- Connector: USB Type-C
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 2.5 W (2.5–23.1W optional) | Maximum Power Voltage (Vmp) | 5.0 V |
| Peak Current (Imp) | 0.50 A | Open-circuit Voltage (Voc) | 6.6 V |
| Short-circuit Current (Isc) | 0.68 A | Connector Type | USB Type-C |
| Operating Temperature | -20℃ ~ +60℃ | Protection Class | IP65 |
| Cell Type | High efficiency mono silicon | Conversion Efficiency | >23.5% |
Frequently Asked Questions (FAQs)
It matches all 5V low-power wireless security cameras, battery-powered CCTV, farm monitoring cameras and outdoor sensor equipment. Standard Type-C output realizes plug-and-play without extra adapters.
Adopts top-grade monocrystalline silicon cells with over 23.5% conversion efficiency. It maintains stable low-light power output under cloudy weather, ensuring continuous charging for cameras.
Yes, it features fully sealed integrated lamination with IP65 dustproof & waterproof grade, working steadily from -20℃ to +60℃. Anti-aging panel structure greatly cuts your after-sales maintenance cost.
Equipped with a 15°–360° full-angle adjustable metal bracket. It supports wall and pole mounting, buyers can rotate the panel freely to maximize sunlight intake.
Standard package includes 1 solar panel, 4m Type-C cable, mounting bracket, installation screws and user manual. Cable length supports bulk customization for wholesale orders.
It has complete CE, FCC, UL, RoHS certifications, compliant with mainstream market standards of Europe, North America and other regions, no extra compliance barriers for multi-channel sales.
We support flexible MOQ for distributors, stable production chain ensures fast mass delivery. Customization like logo printing, cable length and packaging is available for large bulk orders.
Power tolerance is +5%/-3%. Premium mono silicon cells and sealed lamination extend service life, long service lifespan effectively reduces after-sales loss for your distribution business.
