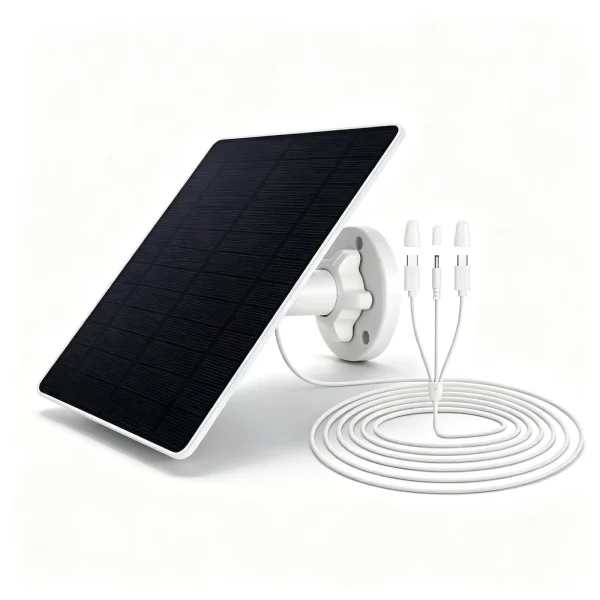

5W Solar Panel for Security Cameras With 3-in-1 Cable
- 5W High-efficiency Mono Silicon Solar Panel for Security Camera
- Top Grade Mono Cells, Conversion Efficiency Over 23.5%
- 0.57kg Lightweight All-in-one Adjustable Bracket Design
- 15°~360° Full Angle Rotatable & Tiltable Mount Stand
- Built-in 4m Long 3-in-1 Output Cable (Micro USB + Type-C + DC)
- DC 5V Stable Output, Max 1.00A Charging Current
- IP65 Dustproof & Rainproof Outdoor Structure with Waterproof Cap
- Wide -25℃ to +60℃ Stable Operating Temperature
- +5%/-3% Power Tolerance, Reliable Power Supply
- ISO/CE/FCC/UL/RoHS/PSE Multi Safety Certifications
- Wear-resistant White ABS Housing & Tempered Glass Surface
Share to
5W Solar Panel for Security Camera is a stable, cost-effective power supply solution for bulk security camera procurement and outdoor surveillance projects. This dedicated monitoring solar panel adopts premium monocrystalline silicon cells with over 23.5% conversion efficiency, delivering consistent 5V off-grid charging power for wireless battery-powered cameras in all weather scenarios. It comes with a lightweight integrated bracket, IP65 fully weatherproof shell, 15°-360° full-angle adjustable mount, plus a 4-meter long 3-in-1 cable compatible with Micro USB, Type-C and DC ports. Ideal for security installers, smart home resellers and community monitoring bulk projects, the unit operates reliably across a wide temperature range with tight power tolerance and complete global safety certifications, guaranteeing stable long-term performance for large-scale outdoor deployment. Flexible MOQ and customizable OEM & ODM services are offered to satisfy all wholesale business requirements.
Core Product Advantages
- High-Efficiency Mono Silicon Cells – Premium single crystal silicon with conversion efficiency over 23.5%, stable power generation even on cloudy low-light days.
- Full-Angle Adjustable Mount Bracket – Supports 15°-360° rotation and tilt, freely align panel toward sunlight for maximum energy harvest.
- Ultra-Light Compact Build – Total weight only 0.57kg, integrated stand design for quick wall or pole installation without extra accessories.
- Stable 5V 3-in-1 Output – Multi-port cable with Micro USB, Type-C and DC plugs, 4-meter long cable, max 1.00A charging current compatible with most wireless CCTV cameras, equipped with waterproof cap for ports.
- IP65 Dustproof & Rainproof Housing – Sealed ABS frame and tempered glass surface to resist outdoor rain, dust and daily weather erosion.
- Wide-Temp Reliable Operation – Runs stably from -25℃ to +60℃, adapts to frigid winter and hot summer outdoor environments.
- Strict Power Output Tolerance – +5%/-3% power tolerance, consistent 5W nominal output to avoid camera power shortage.
- Multi Global Safety Certifications – Passed ISO, CE, FCC, UL, RoHS and PSE certifications, fully compliant for cross-border wholesale sales.
- Anti-Reverse Circuit Protection – ≥20V maximum reverse voltage resistance, effectively protect camera built-in batteries from damage.
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 5W Solar Panel for Security Camera
- 1 × 360° Adjustable Mounting Bracket
- 1 × 4m Charging Cable (Micro USB + Type-C + DC 3-in-1 with waterproof cap)
- 1 × Full Set Mounting Screws & Hardware
- 1 × User Manual (English)
Product & Packaging Specs
- Model: GT-EPTO5-V2
- Material Type: High-efficiency Monocrystalline Silicon
- Efficiency: >23.5% Top Grade Mono Cells
- Operating Temperature: -25℃ ~ +60℃
- Product Dimensions: 210.8 × 46 × 172 mm / 8.3 × 1.81 × 6.77 in
- Weight: 0.57 kg
- Cable Length: 4 m
- Connector: 3-in-1 output (Micro USB + Type-C + DC)
- Max Reverse Voltage: ≥20 V
- Protection Class: IP65 waterproof & dustproof
- Certifications: ISO, CE, FCC, UL, RoHS, PSE
- Special Feature: All-in-one adjustable vertical stand, 15°–360° full angle rotation & tilt
- Low-light performance: Stable power generation under cloudy weak light environments
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 5.0W | Maximum Power Voltage | 5.0V |
| Peak current (Imp) | 1.00A | Open-circuit voltage (Voc) | 6.6V |
| Short-circuit Current(Isc) | 1.35A | Connector Type | 3-in-1 Cable (Micro USB + Type-C + DC), 4m cable |
| Output Ports | 3-in-1 Cable (Micro USB + Type-C + DC), 4m cable with waterproof cap | Max Reverse Voltage | ≥20V |
| Cell Type | High efficiency mono silicon | Operating Temp | -25℃ ~ +60℃ |
Frequently Asked Questions (FAQs)
This product comes with a 3-in-1 waterproof output cable (Micro USB + Type-C + DC) and delivers stable 5V power. It is compatible with most household & outdoor wireless battery-powered security cameras and low-power lithium-ion surveillance devices. The included 4-meter long cable suits off-grid monitoring projects for yards, construction sites and residential communities. No extra adapter cables are required for bulk engineering purchases.
It adopts top-grade monocrystalline silicon cells, which deliver far better low-light performance than polycrystalline solar panels. It can keep steady charging even on cloudy days. With strict power tolerance of +5%/-3%, it avoids power shortages during long-term outdoor deployment, making it ideal for bulk supply to regions with rainy weather all year round.
The bracket supports full-angle rotation and tilt from 15° to 360°, compatible with both wall and pole mounting. The integrated lightweight bracket requires no extra accessories. Weighing only 0.57kg, it enables one-person fast installation, greatly cutting labor costs for engineering projects and improving efficiency for bulk orders.
The whole unit features IP65 dustproof and waterproof performance, with sealed ABS housing and tempered glass surface to resist rain, dust and outdoor UV erosion. It operates stably between -25℃ and +60℃, suitable for outdoor use in cold northern regions and hot southern areas worldwide, perfect for cross-border wholesale to all climate zones.
We provide full OEM & ODM customization services, including custom LOGO silk printing, adjustable cable lengths, customized color boxes and English user manuals. Flexible MOQ is available for both small and bulk orders, catering to private label stocking needs of cross-border wholesalers, smart home brands and security engineering companies.
The product has passed full international safety certifications including ISO, CE, FCC, UL, RoHS and PSE. All electrical parameters meet global standards for cross-border sales. Complete certification documents are provided to ensure smooth customs clearance without qualification risks for wholesalers.
Built-in anti-reverse circuit protection withstands a maximum reverse voltage of ≥20V, which effectively prevents reverse current from breaking the camera lithium batteries. It outputs stable 5V constant voltage with a max charging current of 1.00A to avoid overcharging surveillance devices, lowering after-sales failure rates and reducing after-sales pressure for wholesalers.
Each complete package includes: 5W solar panel, 360° adjustable mounting bracket, 4-meter 3-in-1 waterproof cable, full set of mounting hardware screws and English user manual. The standard 4-meter cable eliminates extra accessory purchases for your customers. End users can install the product directly after unboxing, improving customer experience and cutting extra accessory costs for wholesalers.
