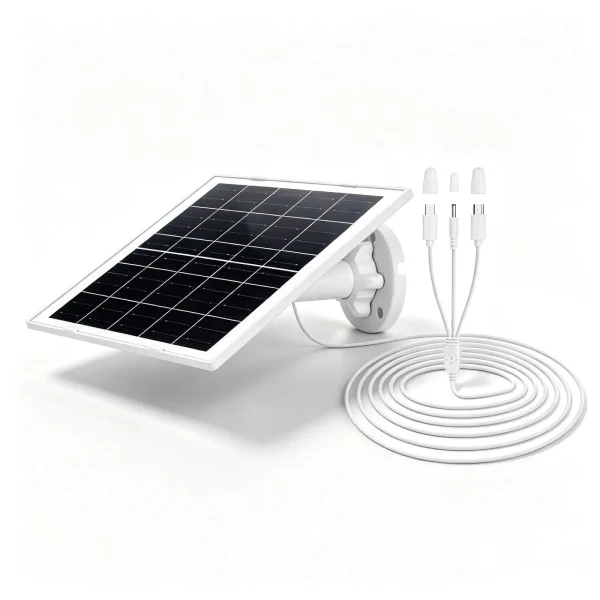

8W Solar Panel for Security Camera With 3-in-1 Cable
- 8W High-efficiency Mono Silicon Solar Panel for Security Camera
- Top Grade Mono Cells, Conversion Efficiency Over 23.5%
- 0.5kg Lightweight All-in-one Adjustable Bracket Design
- 15°~360° Full Angle Rotatable & Tiltable Mount Stand
- Built-in 4m Long 3-in-1 Output Cable (Micro USB+TYPE-C+DC) with Waterproof Caps
- DC 5V Stable Output, Max 1.6A Charging Current
- IP65 Dustproof & Rainproof Outdoor Structure
- Wide -25℃ to +60℃ Stable Operating Temperature
- +5%/-3% Power Tolerance, Reliable Power Supply
- ISO/CE/FCC/UL/RoHS/PSE Multi Safety Certifications
- Wear-resistant White ABS Housing & Tempered Glass Surface
Share to
Category:
This 8W Solar Panel for Security Camera is a stable, cost-effective power supply solution for security camera bulk procurement and outdoor surveillance projects. Equipped with top-grade monocrystalline silicon cells delivering over 23.5% conversion efficiency, it provides steady 5V off-grid charging power for wireless battery cameras under all weather conditions. Its lightweight all-in-one bracket, IP65 weatherproof housing, 15°–360° adjustable mounting structure and 4m extended 3-in-1 cable (Micro USB+TYPE-C+DC with waterproof caps) perfectly fit security system installers, smart home retailers and community monitoring projects. With wide operating temperature range, strict power tolerance and full global safety certifications, this 8W Solar Panel for Security Camera maintains consistent long-term performance for mass outdoor deployment. Custom OEM/ODM service and flexible MOQs are available to match your wholesale business demands.
Core Product Advantages
- High-Efficiency Mono Silicon Cells – Premium single crystal silicon with conversion efficiency over 23.5%, stable power generation even on cloudy low-light days.
- Full-Angle Adjustable Mount Bracket – Supports 15°–360° rotation and tilt, freely align panel toward sunlight for maximum energy harvest.
- Ultra-Light Compact Build – Total weight only 0.5kg, integrated stand design for quick wall or pole installation without extra accessories.
- Stable 5V 3-in-1 Output – Integrated Micro USB+TYPE-C+DC connector with waterproof caps, matched with 4-meter long cable, max 1.6A charging current compatible with most wireless CCTV cameras.
- IP65 Dustproof & Rainproof Housing – Sealed ABS frame and tempered glass surface to resist outdoor rain, dust and daily weather erosion.
- Wide-Temp Reliable Operation – Runs stably from -25℃ to +60℃, adapts to frigid winter and hot summer outdoor environments.
- Strict Power Output Tolerance – +5%/-3% power tolerance, consistent 8W nominal output to avoid camera power shortage.
- Multi Global Safety Certifications – Passed ISO, CE, FCC, UL, RoHS and PSE certifications, fully compliant for cross-border wholesale sales.
- Anti-Reverse Circuit Protection – ≥20V maximum reverse voltage resistance, effectively protect camera built-in batteries from damage.
- We also offer OEM/ODM services for bulk orders of this solar panel.
Package Includes
- 1 × 8W Solar Panel for Security Camera
- 1 × 15°–360° Adjustable Mounting Bracket
- 1 × 4m 3-in-1 Charging Cable (Micro USB + TYPE-C + DC) with waterproof caps
- 1 × Full Set Mounting Screws & Hardware
- 1 × User Manual (English)
Product & Packaging Specs
- Model: GT-NPT08-B2
- Material Type: High-efficiency Monocrystalline Silicon
- Efficiency: >23.5% Top Grade Mono Cells
- Operating Temperature: -25℃ ~ +60℃
- Product Dimensions: 231 × 46 × 165.1 mm / 9.09 × 1.81 × 6.5 in
- Weight: 0.5 kg
- Cable Length: 4 m
- Connector: 3-in-1 output (Micro USB + TYPE-C + DC) with waterproof caps
- Max Reverse Voltage: ≥20 V
- Protection Class: IP65 waterproof & dustproof
- Certifications: ISO, CE, FCC, UL, RoHS, PSE
- Special Feature: All-in-one adjustable vertical stand, 15°–360° full angle rotation & tilt
- Low-light performance: Stable power generation under cloudy weak light environments
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Maximum Power | 8W | Maximum Power Voltage | 5.0V |
| Peak current (Imp) | 1.60A | Open-circuit voltage (Voc) | 6.6V |
| Short-circuit Current(Isc) | 2.16A | Connector Type | 3-in-1 (Micro USB+TYPE-C+DC), 4m cable with waterproof caps |
| Output Ports | 3-in-1 (Micro USB+TYPE-C+DC), 4m cable with waterproof caps | Max Reverse Voltage | ≥20V |
| Cell Type | High efficiency mono silicon | Operating Temp | -25℃ ~ +60℃ |
Frequently Asked Questions (FAQs)
This product comes with a 3-in-1 output port (Micro USB + Type-C + DC) equipped with waterproof caps. It is directly compatible with most 5V wireless battery-powered surveillance cameras, outdoor home cameras and low-power solar CCTV cameras on the market. The 4-meter extended cable supports pole mounting and long-distance installation without extra adapters, so you don’t need to stock various conversion accessories for bulk sales.
It adopts Grade A high-efficiency monocrystalline silicon cells with stable power output under weak light. It can continuously deliver steady 5V power even on cloudy days. With a wide operating temperature range of -25℃ ~ +60℃, it fits rainy southern areas and cold northern regions equally well. It works great for retail home security kits and bulk surveillance projects for farms, construction sites and orchards, so distributors can sell it across different climate zones without limitations.
The all-in-one adjustable bracket supports full-angle tilt and rotation. Only one set of mounting screws is required for wall or pole installation, no extra hardware needed. Weighing only 0.5kg, the lightweight unit allows single-person fast assembly. It drastically cuts construction labor time for large-scale security projects and lowers installation costs, making it popular among system installers.
The fully sealed ABS housing plus tempered glass surface, together with independent waterproof caps for ports, delivers strong resistance against rain, dust and outdoor weather erosion. Every unit passes strict aging tests for stable long-term outdoor operation. We provide dedicated bulk warranty support for wholesale buyers; extended after-sales periods can be negotiated for large project orders, with complete after-sales solutions for bulk deployments.
Full OEM & ODM customization services are available with flexible minimum order quantities for both small and large bulk orders. We support custom logo printing on housings, adjustable cable lengths, alternative output connectors and customized color packaging boxes. This perfectly matches the demands of private-label retailers, cross-border sellers and security engineering companies looking for white-label products.
The product has obtained ISO, CE, FCC, UL, RoHS and PSE safety & environmental certifications. Complete certification documents are supplied with each shipment, fully compliant with mainstream cross-border markets including Europe, North America, Southeast Asia, Japan and South Korea. Wholesalers selling via cross-border e-commerce or offline overseas channels can avoid customs detention risks without additional third-party testing.
It features stabilized 5V output with a peak charging current of 1.6A and power tolerance of +5%/-3%, ensuring consistent nominal power output. It provides steady daytime trickle charging for both standard and large-capacity built-in camera batteries, preventing camera offline failures caused by insufficient power on cloudy days and minimizing customer complaints for wholesalers.
Each full set includes an 8W solar panel, 360° adjustable mounting bracket, 4-meter 3-in-1 waterproof cable, complete mounting screw hardware and a printed English user manual. All necessary accessories are fully equipped, so wholesalers can resell directly or supply to engineering projects without buying extra installation parts, reducing additional packaging and matching costs. No manual translation is required for cross-border shipments.
