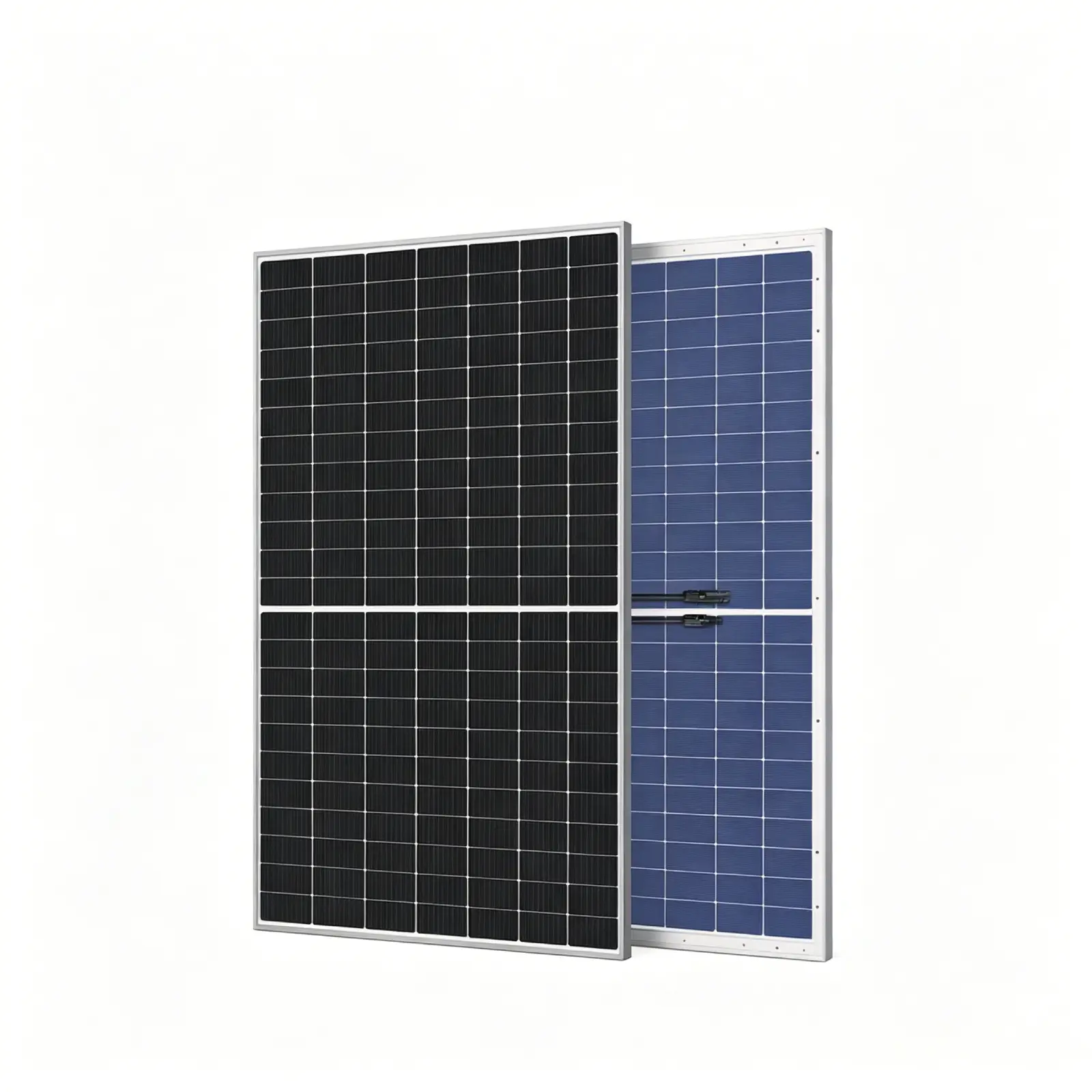

GTPOW 500W Glass Solar Panels-Bifacial
- 500W High-Efficiency Bifacial Solar Panel (N-Type)
- 23.8% Max Conversion Efficiency
- Rigid & Durable Aluminum Frame
- IP68 Waterproof Junction Box
- Pre-Installed MC4 Connectors
- Wide Operating Temperature Range (-25°C ~ +65°C)
- 25-Year Performance Warranty + 30-Year Power Output Guarantee
- Pre-Drilled Mounting Holes for Easy Installation
- Bifacial Design with ~25% Extra Power Generation
- Wind & Snow Resistant Construction
- Versatile for Rooftop, Ground-Mounted & Off-Grid Commercial Projects
Share to
Category:
This 500W bifacial glass solar panel adopts high-performance N-type monocrystalline cells, achieving a 23.8% conversion efficiency. Its bifacial design boosts power generation by approximately 25% by capturing reflected light, ensuring stable output even in temperatures ranging from -25°C to +65°C. Constructed with high-transparency tempered glass, an aluminum alloy frame, and an IP68-rated junction box using premium imported materials, it meets ISO, CE, and TÜV standards. Backed by a 25-year workmanship warranty and a 30-year power output guarantee, it is a reliable choice for your ground-mounted, rooftop, and off-grid commercial projects.
Features
- High Efficiency: N-type monocrystalline cells with up to 23.8% conversion efficiency, delivering 500W rated power with ~25% extra gain from bifacial light capture
- Durable Build: 3.2mm high-transmittance tempered glass + corrosion-resistant aluminum alloy frame, wind and snow resistant for long-term use
- All-Weather Performance: IP68 waterproof junction box, operates reliably from -25℃ to +65℃, ideal for commercial and industrial outdoor installations
- Easy Installation: Pre-installed MC4 connectors + pre-drilled mounting holes, compatible with various roof and ground mounting systems
- Superior Performance: Low initial degradation with excellent low-light output, more stable and reliable than traditional P-type modules
- Reliable Warranty: Backed by a 25-year workmanship warranty and a 30-year linear power output guarantee
- Versatile Applications: Perfect for rooftop systems, ground-mounted power stations, large-scale off-grid projects, and commercial solar farms
Package Includes
- 1 × 500W Glass Solar Panels
- 1 × User Manual
Product & Packaging Specs
- Feature: Bifacial & High-Efficiency
- Fire Rating: Class C
- Cell Efficiency: ＞23.8% (N-Type Mono)
- Weight: 25.9 kg
- Rated Fuse Current: 35 A
- Cell Layout: 120 (10×12)
- Size: 2238 × 1473 × 35 mm (≈88.11 × 57.99 × 1.38 in)
- Cable length: 300mm / customizable
- Low-light Performance: Excellent (N-Type Mono)
- Material: High-transmittance tempered glass, aluminum frame, N-type monocrystalline cells
- Power Boost: ~25% (Bifacial Design)
- Junction Box: IP68 Waterproof
- Warranty: 25-Year Performance Warranty + 30-Year Power Output Guarantee

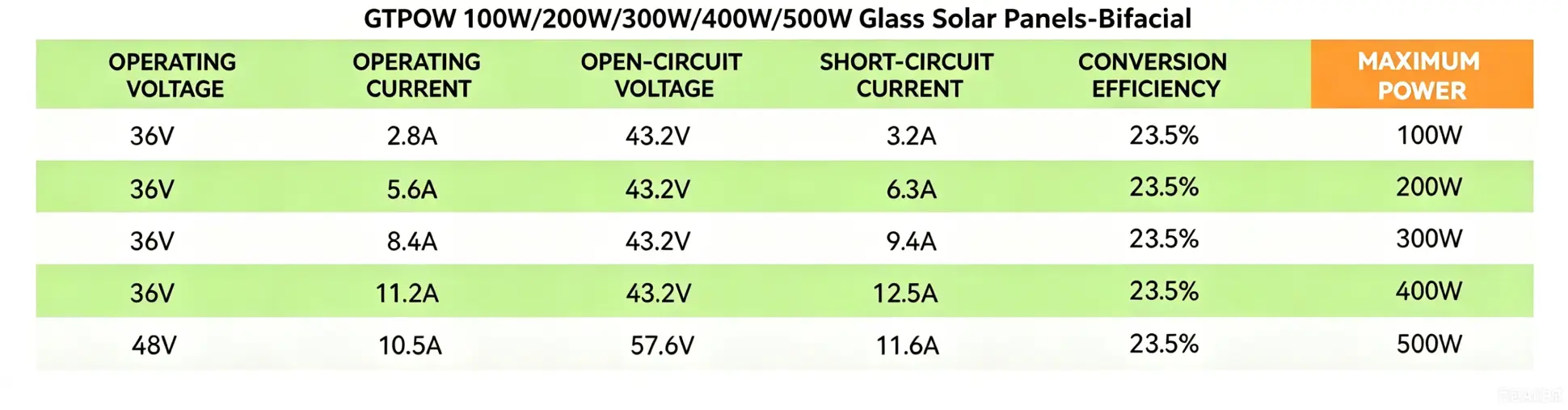

Product Specifications
| Maximum Power | 500 W | Maximum Power Voltage | 48 V |
| Maximum Power Current | 10.5 A | Open-circuit Voltage | 57.6 V |
| Short-circuit Current | 11.6 A | Connector Type | MC4 |
| Operating temperature | -30°C ~ +65°C | Maximum System Voltage | 600V DC |
| Power Tolerance | ±3% | Protection class | IP68 |
Frequently Asked Questions (FAQs)
It uses N-type monocrystalline cells with lower degradation and a 23.5% conversion efficiency, delivering stable power output for 25 years. It is more reliable than standard P-type panels, making it ideal for long-term commercial applications.
Absolutely. Constructed with tempered glass, a corrosion-resistant aluminum frame, and an IP68-rated junction box, it operates reliably across a wide temperature range of -25°C to +65°C, and can withstand strong winds and heavy snow loads for decades of outdoor use.
Installation is highly efficient. Pre-installed MC4 connectors and pre-drilled mounting holes significantly reduce on-site construction time and labor costs for commercial rooftops or off-grid power stations.
It is ideal for small commercial power systems, RV/boat fleets, communication base stations, remote monitoring equipment, and backup power solutions for industrial facilities.
We provide a 25-year performance warranty, including a linear power output guarantee. All products undergo strict quality control and are manufactured under ISO-certified processes.
No. Its advanced low-temperature coefficient technology minimizes efficiency loss at high temperatures, maintaining stable output even in extreme heat — a critical advantage for commercial sites in warm regions.
Yes. We support customizations for large commercial orders, including cable length, connector type, and packaging, to meet the specific requirements of your project.
High-quality Hanwha EVA film enhances UV and moisture resistance, preventing delamination and cell degradation. This ensures the panel maintains stable performance even in humid or coastal environments.
