GTPOW Bifacial Smart Snow-Melt Solar Roof Tile
- Bifacial design for higher revenue
- Auto snow melt opens cold markets
- Insulation upgrades product value
- Solid build reduces after-sales cost
- Long warranty eases sales promotion
- Three specs cover all projects
- Custom look fits varied buildings
- Full certs simplify customs clearance
GTPOW Bifacial Smart Snow-Melt Solar Roof Tile
- Bifacial design for higher revenue
- Auto snow melt opens cold markets
- Insulation upgrades product value
- Solid build reduces after-sales cost
- Long warranty eases sales promotion
- Three specs cover all projects
- Custom look fits varied buildings
- Full certs simplify customs clearance
Share to
Category:

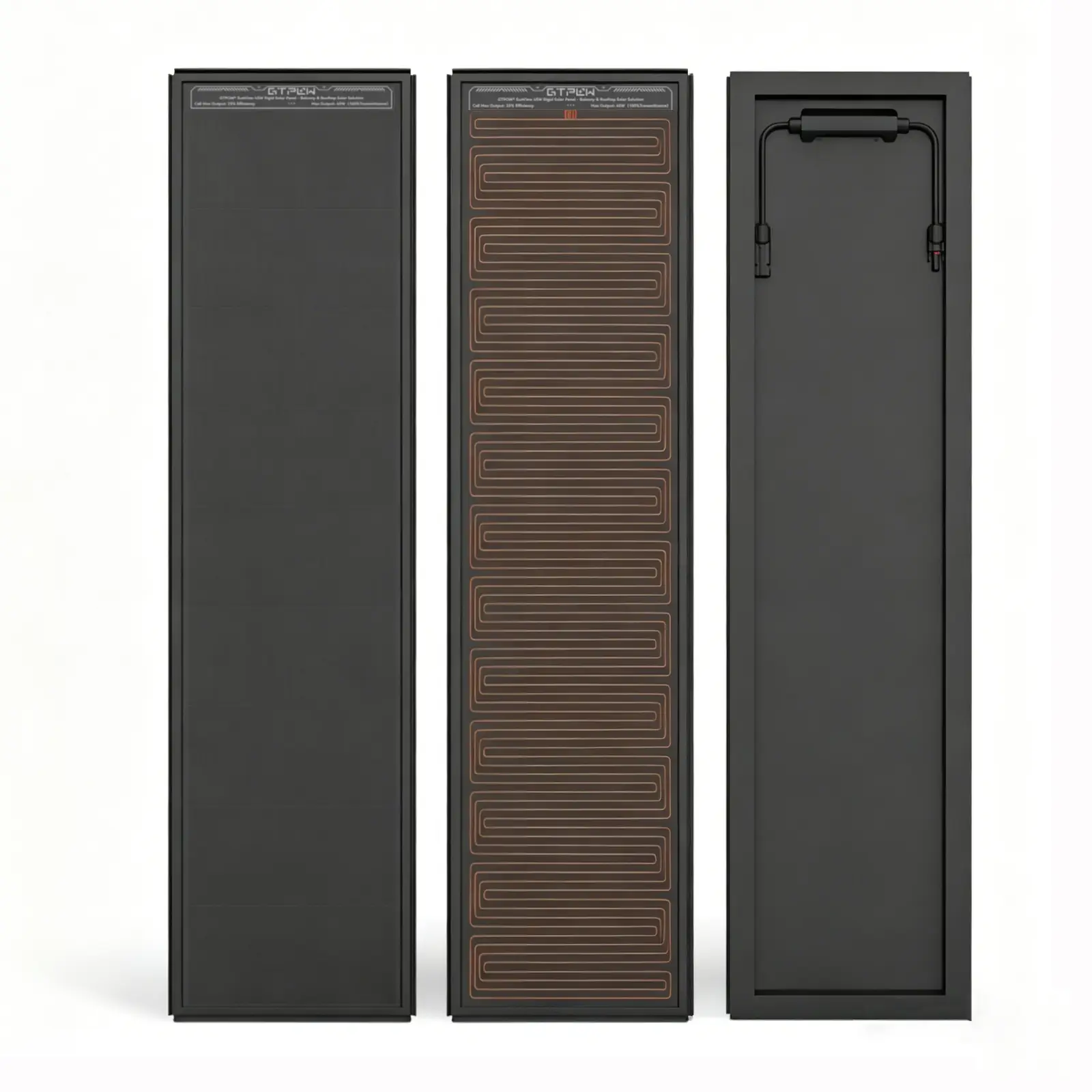

GT-FX-WP solar roof tile is a novel BIPV building photovoltaic product, directly replacing conventional clay tile, asphalt tile and cement tile for roof construction. Adopting advanced N-type TOPCon bifacial solar cells, it realizes power generation from both front sunlight and rear ground reflected light. Built-in intelligent self-heating snow-melt module automatically removes snow in cold winter to ensure continuous power generation. Meanwhile, it lowers indoor roof temperature for excellent thermal insulation effect. Available in 3 standard sizes (1m/45W,2m/90W,3m/150W) with customizable surface colors & light transmittance, widely applied in villa, rural housing, resort, new countryside reconstruction and commercial BIPV projects worldwide.
Core Product Advantages
- High-efficiency Bifacial Power Gain：25.3% conversion efficiency, bifacial design boosts power by 20~30%, low annual attenuation.
- Built-in Auto Snow-Melt System：Automatic heating at 0℃ and shutdown at 20℃, big market advantage for cold & snowy regions.
- Energy-saving Insulation Performance：Cool roof effect cuts air-condition cost, improves product competitiveness for residential projects.
- Outstanding Structural Safety：Class A fire rating, IP67/IP68 waterproof, 5400Pa snow load & 2400Pa wind resistance, wide climate adaptability (-40℃~+85℃).
- Industry Top-tier Warranty Policy：25-year workmanship warranty plus 30-year linear power warranty, easy for dealers to persuade end buyers.
- Three Standard Sizes Ready In Stock：45W/90W/150W complete specifications for diverse rooftop installation demands.
- Rich Customization Support：Multiple colors, textures and adjustable transmittance to match various architectural styles.
- Complete Global Certification：ISO management certificates + IEC/CE/UL/CQC approvals, smooth customs clearance for overseas wholesale.
Package Includes
- Solar roof tile main body ×1
- Interlocking aluminum accessories
- MC4 male & female connectors
- Installation instruction manual
- Product certification & warranty card
Product & Packaging Specs
Electrical & Dimension Parameter
- 45W(1M): 9.71×40.04×1.10 inch, 5.19kg, Pmax45W, Vmp5.4V, Voc6.3V
- 90W(2M): 9.71×78.94×1.10 inch, 9.87kg, Pmax90W, Vmp10V, Voc12V
- 150W(3M): 9.71×130.10×1.10 inch, 15kg, Pmax150W, Vmp18V, Voc21V
- Universal: Imp8.3A, Isc8.55A, Power tolerance 0~+5W, MC4 connector
Cell & Efficiency
N-type TOPCon bifacial cell, efficiency ≥25.3%, extra 20%-30% power gain; ≤1% first-year degradation, ≤0.4% yearly later.
Auto Snow-melt Spec
12V/24W heating sheet, resistance 6Ω±5%; heat start at 0℃, stop at 20℃.
Temperature Data
Pmax: -0.35~-0.40%/℃, Voc: -0.30~-0.35%/℃, Isc: +0.05~+0.08%/℃; working temp -40℃~+85℃, NOCT 48℃±3℃.
Structure & Protection
3.2mm low-iron tempered glass, interlocking aluminum frame; IP67 junction box, IP68 heating component; Class A fireproof, 5400Pa snow load, 2400Pa wind load.
Warranty
25-year workmanship warranty; 30-year power warranty: 99%(5Y) / 98%(10Y) / 95%(15Y) / 90%(20Y) / 88%(25Y) / 85%(30Y).
Custom & Certification
Custom colors/patterns, light transmittance 36%~96%; ISO+IEC+CE+UL+CQC approved.
Product Specifications
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Product Model | GT-FX-WP Series, available in 3 standard sizes: 1M(45W) / 2M(90W) / 3M(150W) | Peak Output Power (Pmax) | 45W (1M) / 90W (2M) / 150W (3M), Power Tolerance: 0 ~ +5W |
| Module Conversion Efficiency | ≥25.3%, N-type TOPCon Bifacial Cell, extra 20%~30% power gain from rear side | Product Dimension | 1M: 9.71×40.04×1.10 inch 2M: 9.71×78.94×1.10 inch 3M: 9.71×130.10×1.10 inch |
| Net Weight Per Piece | 1M: 5.19kg / 2M: 9.87kg / 3M: 15.00kg | Maximum Power Point Voltage (Vmp) | 1M: 5.4V / 2M: 10V / 3M: 18V Universal Imp: 8.3A, Isc: 8.55A |
| Protection Grade | IP67 (Junction Box) / IP68 (Heating Component), Dustproof & Waterproof | Operating Temperature Range | -40℃ ~ +85℃, suitable for frigid cold to high temperature regions |
| Warranty Period | 25 Years Workmanship Warranty + 30 Years Linear Power Output Warranty | Fire Resistance Grade | Class A (Non-combustible), meets global building fire safety standards |
Frequently Asked Questions (FAQs)
Small trial order is acceptable; full container loading supports mixed three specifications. Samples can be arranged.
Multiple patterns and transmittance from 36%-96% are available, customized production for bulk orders.
ISO、CE、IEC etc. certifications are available; supplementary documents offered based on different country requirements.
It starts heating at 0℃ and cuts off at 20℃, only runs under snow weather with low power consumption.
First-year degradation ≤1%, annual attenuation ≤0.4% from the second year.
Standard stock items:15-20 working days; customized colors:25-30 working days.
25-year workmanship warranty +30-year power warranty, factory provides official warranty certificate.
Free installation manuals and online technical guidance; big annual orders support negotiated offline training.
