How to Connect Two 200W Solar Panels?

gaotu

August 19, 2026

Total power output from two 200 W solar panels reaches 400 W. You have two common wiring options: series connection and parallel connection. Each delivers different voltage‑current performance and fits different off‑grid scenarios such as RV, balcony solar and small cabin power supply.

Reference specs for typical 200 W monocrystalline solar panel:

Vmp: 20‑24 V, Imp: 8‑10 A

What Is Series Connection

When wired in series, voltage doubles while current remains unchanged.

One single 200 W panel: 20 V / 10 A

Two 200 W panels in series: 40 V / 10 A, total 400 W

Best for: 24 V battery banks, long‑distance cable runs, reduces voltage drop loss.

Notice: Two solar panels should be the same model and power rating. Check your charge controller maximum open‑circuit voltage tolerance.

Step‑by‑step wiring:

Connect the negative (−) terminal of panel A to the positive (+) terminal of panel B.
The leftover positive (+) from panel A and negative (−) from panel B connect to your solar charge controller.

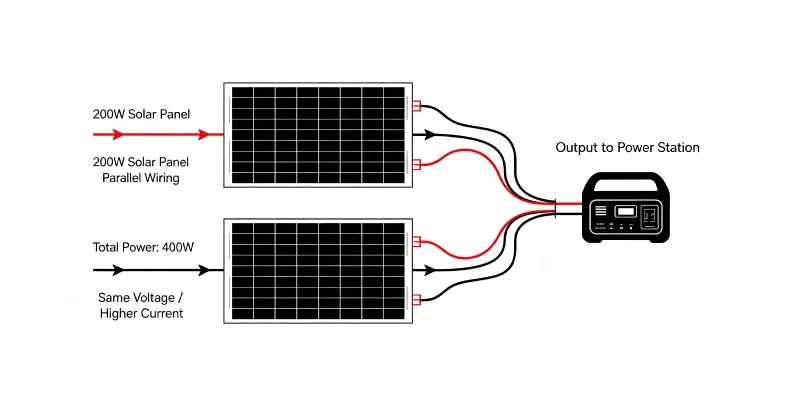

What Is Parallel Connection

When wired in parallel, current doubles while voltage stays the same.

One single 200 W panel: 20 V / 10 A

Two 200 W panels in parallel: 20 V / 20 A, total 400 W

Best for: 12 V battery systems, RV, balcony off‑grid solar kits.

Notice: Higher output current requires thicker solar cables. Prepare MC4 Y‑branch connectors.

Step‑by‑step wiring:

Connect positive (+) of panel 1 to positive (+) of panel 2.
Connect negative (−) of panel 1 to negative (−) of panel 2. MC4 Y‑connectors make installation neat.
The combined positive and negative wires run to the solar charge controller.

How To Choose: Series vs Parallel

For charging 12 V battery bank → choose Parallel
For charging 24 V battery bank → choose Series

Critical Safety Tips

Always install a solar charge controller between solar panels and battery. Never connect panels directly to battery.
Solar panels generate live voltage under sunlight. Wear insulated gloves during wiring work.
Use dedicated MC4 solar cables and connectors, regular household wire cannot be used.
Avoid mixing different‑wattage or different‑model panels, mismatched panels will cause power loss.
Confirm your battery voltage before you start wiring.
